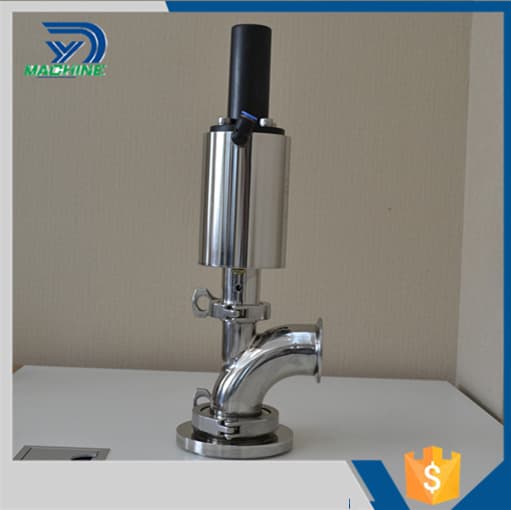

Stainless Steel Sanitary Clamped Tank Bottom Valve

Name: Stainless Steel Sanitary Clamped Tank Bottom Valve
Brand: DEYI Equipment Industries Limited
SKU: nXtQrYWKOdkG
Price: 835 INR

5.0InStock Source-listed auditby DEYI Equipment Industries Limited

₹835≈ $10 · indicative, confirm with supplier

Payment

LC, T/T, D/P

Incoterms

FOB, CFR, CIF, EXW

Chat now

Supplier information

Description

Stainless Steel Sanitary Clamped Tank Bottom Valve. Sanitary Design Compliance: Meets 3A, SMS, and ISO standards for dairy, food, and pharmaceutical industries. High-Grade Material Contact: Parts in contact with product use AISI 316L or AISI 304 stainless steel. Safe Seat Opening Design: Valve seat opens inside the tank to prevent accidental opening under overpressure. Adjustable Body Configuration: Features 360-degree adjustable body even after flange welding to the tank. Visual Inspection Capability: Open lantern design allows direct visual inspection of shaft sealing. Easy Disassembly Mechanism: Quick disassembly achieved simply by loosening the sanitary clamp. Low Pressure Operation: Designed for low pressure applications with max working pressure of 10 bar.
